Additional Information
Why Choose the K8 Series?
- Versatile Media Handling Supports a vast range of flexible media from soft films and PVC flex banners to leather and wallpaper, allowing you to diversify your service offerings.
- Industrial Precision Features a robust beam structure and THK mute guide rails for stable stepping and bi-directional switching, ensuring faster production speeds without compromising accuracy.
- High-Speed Productivity Equipped with high-power A/C servo systems that improve movement capability by 50%, significantly boosting your output.
- Intelligent Ink Management Includes a water cycle heating system to ensure better ink absorption and an intelligent cleaning system to maintain printhead health with minimal manual intervention.
- Superior Adhesion System Utilizes a super big four glue stick linkage system to ensure smooth media feeding and consistent print quality across the entire width.
Model Specifications

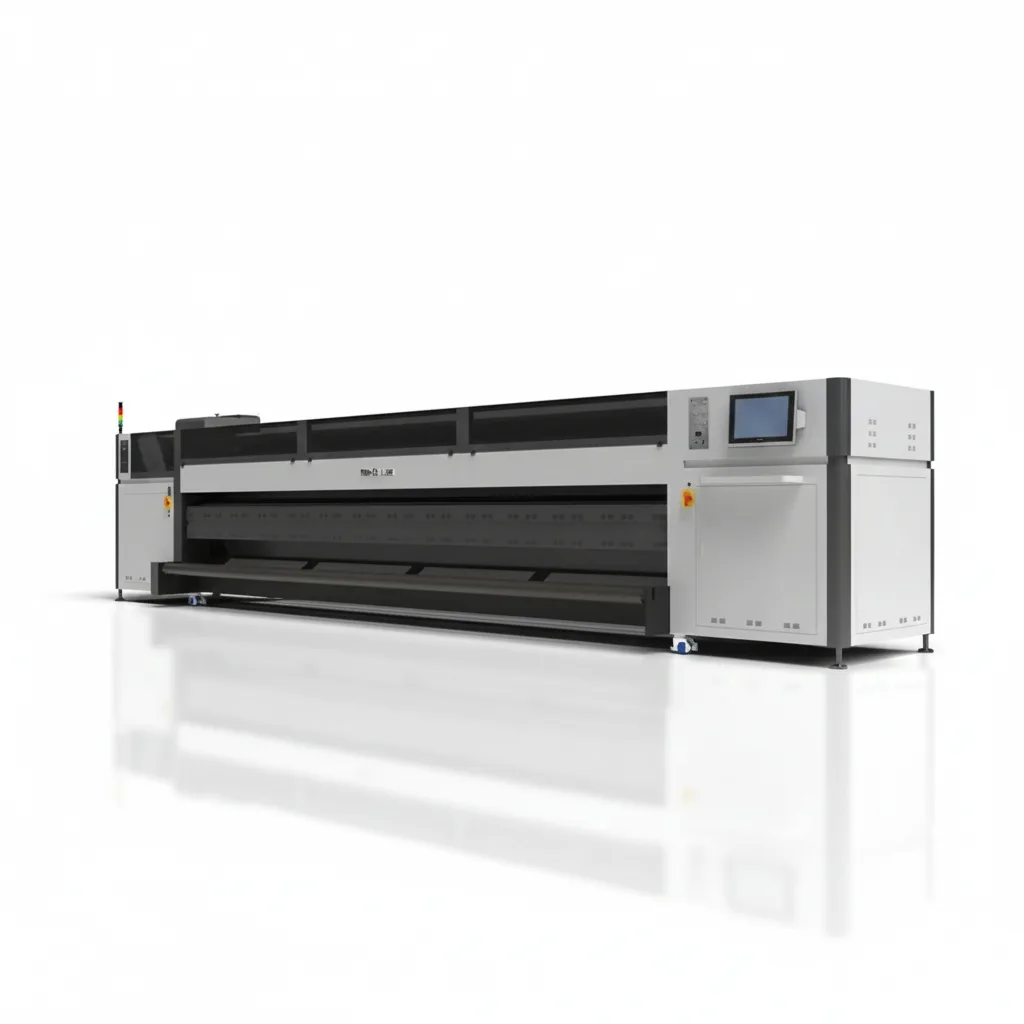

Model K8-320 UV Roll to Roll Printer
Compact yet powerful, ideal for standard large-format printing with high-speed configurations.
| Print Width | 3,220mm |
|---|---|
| Printhead Type | SPT1024GS-7PL / Starfire 1024 |
| Printhead Configuration | 4 / 8 / 12 / 16 pcs (Optional) |
| Ink Type | UV Ink (CMYK, Lc, Lm, W) |
| Print Speed (High Config) | Draft (4Pass): 99 ㎡/h | Standard (6Pass): 70 ㎡/h | High Res (8Pass): 55 ㎡/h |
| Print Speed (Std Config) | Draft (4Pass): 72 ㎡/h | Standard (6Pass): 48 ㎡/h | High Res (8Pass): 36 ㎡/h |
| RIP Software | United Fancy / Photoprint |
| Power Specification | Print System: 3000W | UV System: 2500W |
| Machine Dimensions | 6,320mm × 1,737mm × 1,769mm |
| Net Weight | 1,250kg ± 15kg |
Model K8-530 UV Roll to Roll Printer
Designed for wider media output, perfect for large outdoor banners and industrial production.
| Print Width | 5,000mm |
|---|---|
| Printhead Type | SPT1024GS-7PL |
| Printhead Configuration | 4 / 8 / 12 pcs (Optional) |
| Ink Type | UV Ink (CMYK, Lc, Lm, W) |
| Print Speed | Draft (4Pass): 64 ㎡/h | Standard (6Pass): 48 ㎡/h | High Res (8Pass): 32 ㎡/h |
| RIP Software | United Fancy / Photoprint / Onyx |
| Power Specification | Print System: 3000W |
| Machine Dimensions | 8,230mm × 1,740mm × 1,885mm |
| Net Weight | 4,250kg ± 15kg |
Model K8-680 UV Roll to Roll Printer
The ultimate solution for super-wide format printing, offering maximum production capacity.
| Print Width | Super Wide Format (Contact for specific width details) |
|---|---|
| Printhead Type | SPT1024GS-7PL / Starfire 1024 |
| Printhead Configuration | Variable configurations available (Up to 16+ pcs) |
| Ink Type | UV Ink (CMYK, Lc, Lm, W) |
| Media Handling | Heavy-duty Roll to Roll feeding and take-up system |
| Construction | Reinforced industrial beam for maximum stability |
General & Environment Specifications
Media Compatibility
| Media Types | Soft film, Banner, PVC Flex Banner, Light Box Panel, Leather, Wallpaper, Backlit Fabric, Ceiling Film, PET, etc. |
|---|---|
| Media Processing | Roll to Roll feeding and take-up system |
| Carriage Height | Adjustable 2-5mm distance to platform |
Operational Environment
| Working Voltage | AC 220V 50/60Hz |
|---|---|
| Operating Temperature | 22°C - 30°C |
| Relative Humidity | 15% - 40% RH |
| File Formats | TIFF, JPG, EPS, PDF |
| Operating System | Windows 7 / 8 / 10 Workstation |
