Additional Information
Key Features

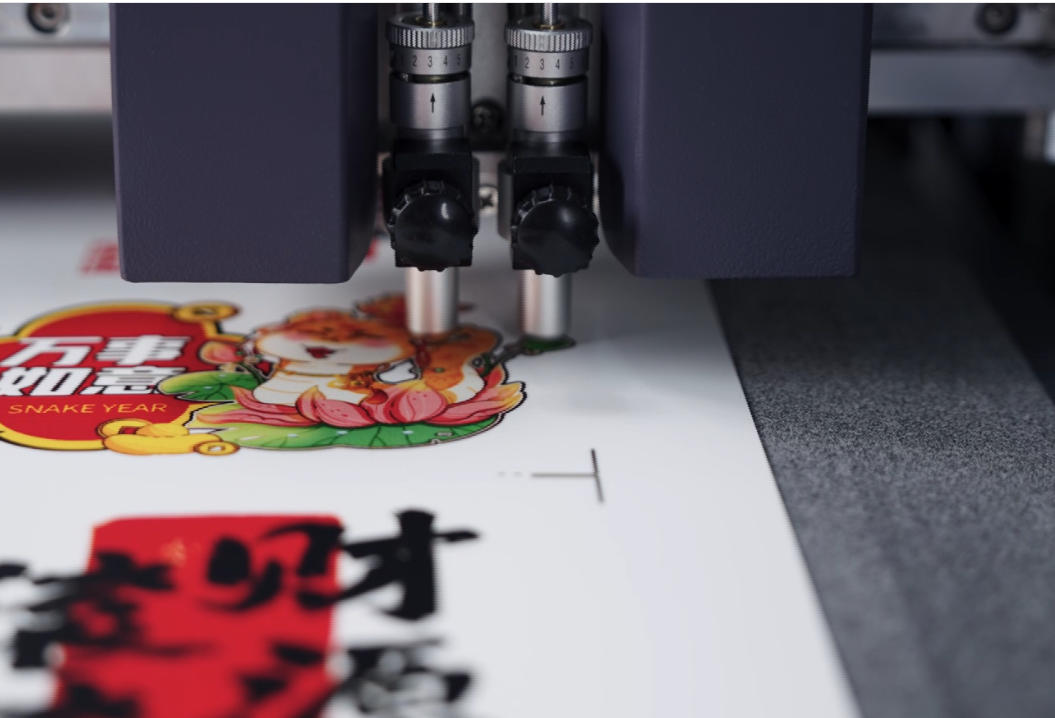

- Dual Head Efficiency Features a dual-head configuration that doubles productivity, allowing for simultaneous cutting or creasing operations on the same material sheet.

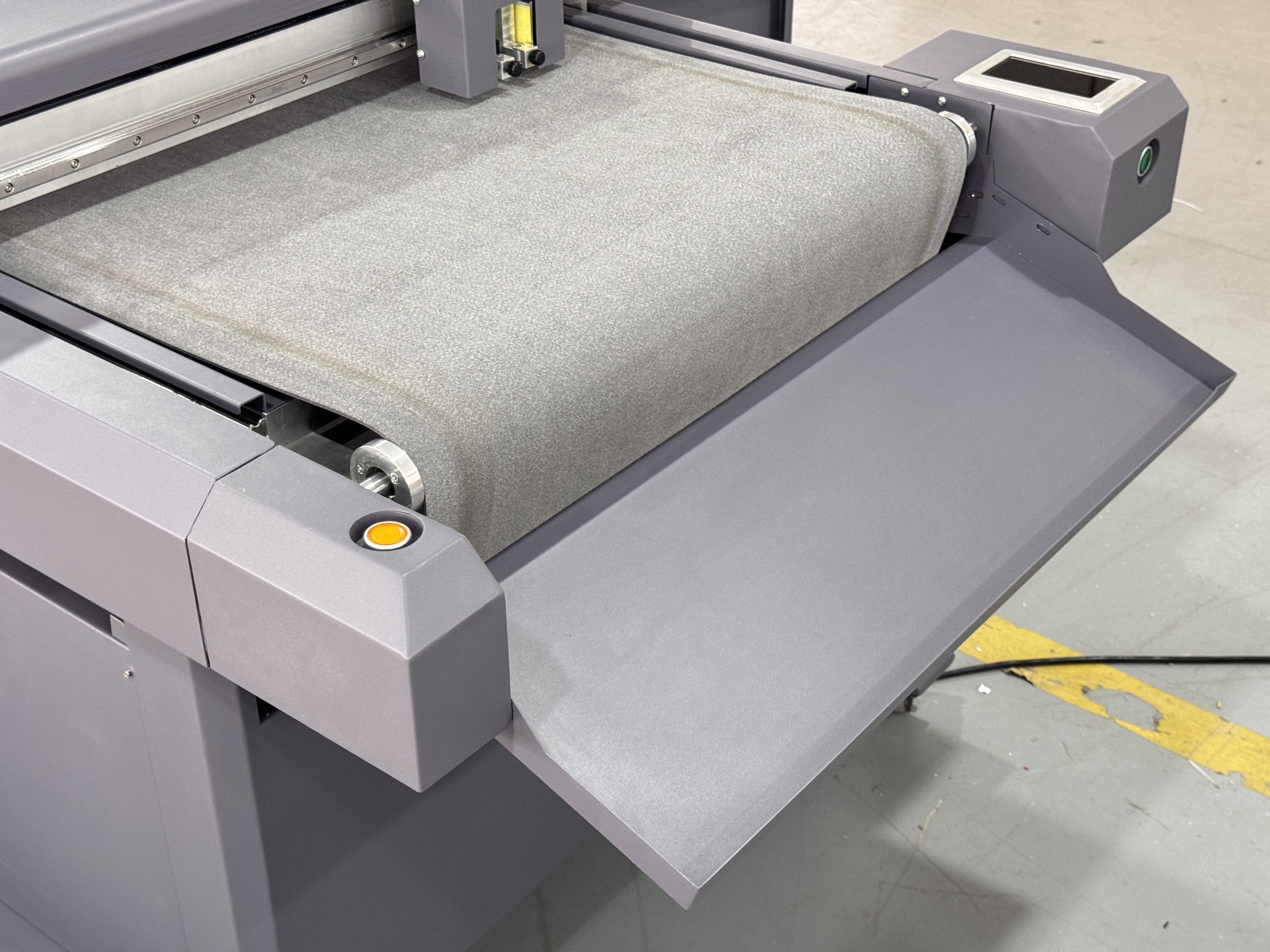

- Advanced Auto Feeding System Designed with an ultra-fast and extra stable auto-feeding mechanism, ensuring continuous operation and precise material alignment.
- High Cutting Force & Precision Delivers up to 2000g of cutting pressure with a repeatability accuracy of ±0.01mm, easily handling cardstock, PVC, leather, and foam.
- AI-Camera Contour Cutting Integrated AI-camera system with enhanced display quality for precise auto contour cutting and pattern recognition.
- Smart Double Row Roller Incorporates a smart double row roller system that optimizes material usage, helping save up to 30% more materials compared to standard feeders.
Technical Specifications
Machine Parameters

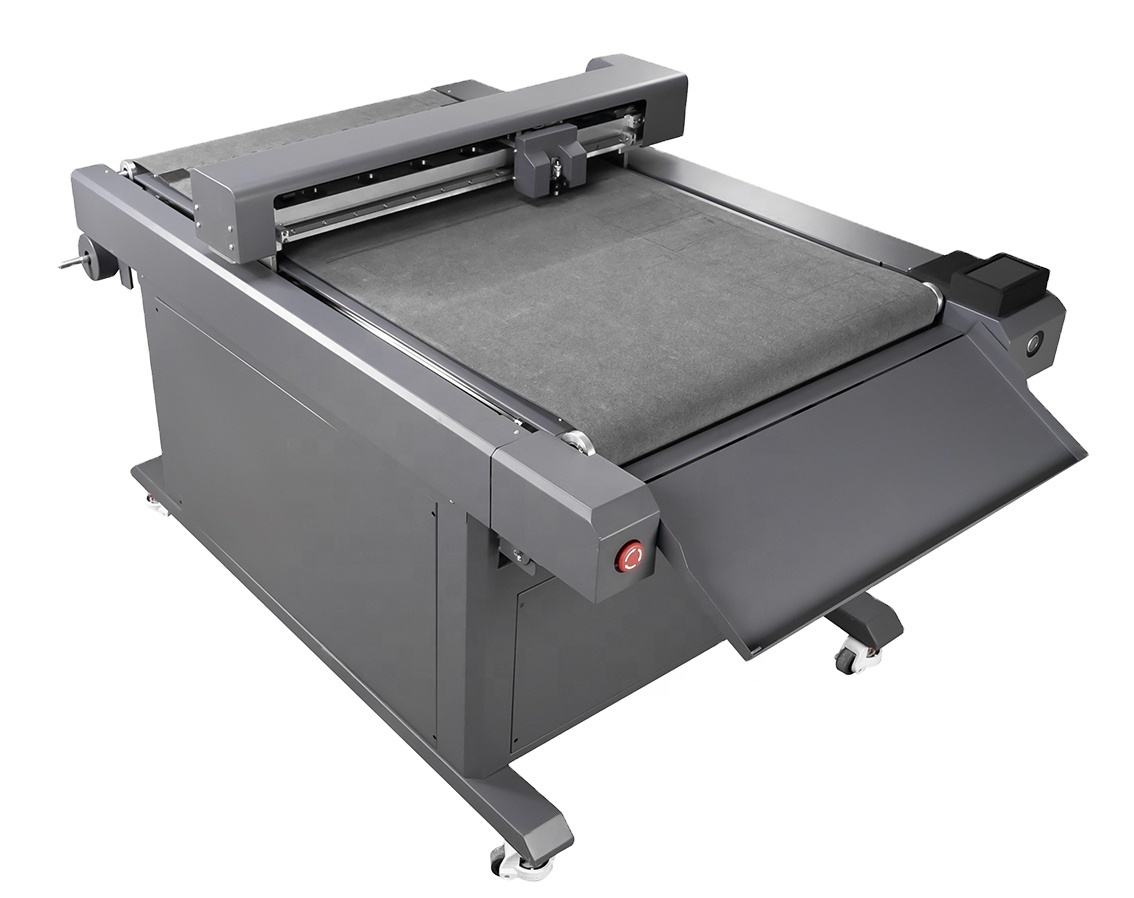

| Brand / Model | SKYCUT FR6090 Flatbed Plotter |
|---|---|
| Machine Type | Dual Head Industrial Flatbed Cutter |
| Working Area Size | 630 × 1200 mm |
| Max Material Placement | 600 × 900 mm |
Performance & Configuration
| Motor System | DC Stepper Motor |
|---|---|
| Max Cutting Speed | 800 mm/s |
| Max Cutting Pressure | 2000 g |
| Cutting Accuracy | 0.025 mm |
| Repeatability Accuracy | ±0.01 mm |

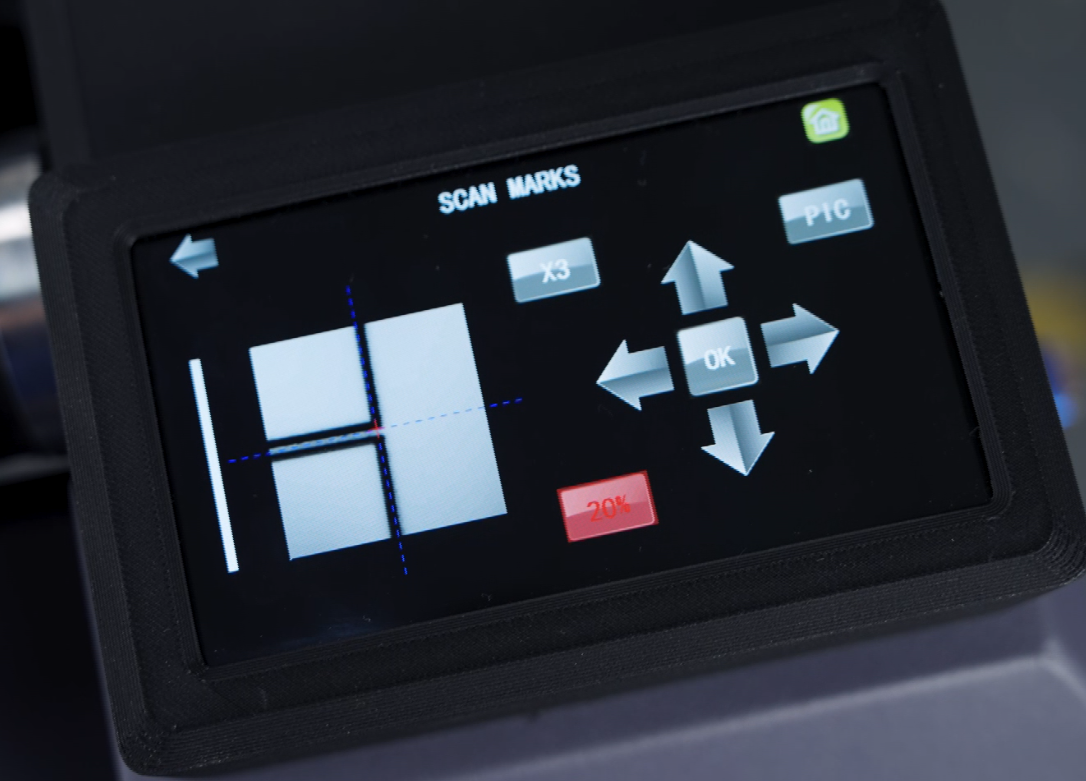

| Control Panel | 5-Inch Touch Screen |
Connectivity & Environment
| Connection Interface | Wi-Fi / USB / LAN Cable |
|---|---|
| Camera Support | Yes (AI-Camera System) |
| Automatic Feeding | Supported |
| Input Power | 100–240V AC, 50/60Hz |
| Power Consumption | Main Unit: 150W / Fan: 1500W |
| Operating Temperature | 5°C – 35°C |
Physical Dimensions
| Overall Machine Size | 1770 × 1000 × 980 mm |
|---|---|
| Overall Machine Weight | 200 kg |
Application Scope
| Compatible Materials | Cardstock, Heat Transfer Film, Self-Adhesive Paper, Kraft Paper, PVC, PET, Leather, Fabric |
|---|---|
| Industry Use | Packaging, Sample Making, Signage, Gasket Cutting, Textile Industry |
