Seiko Alpha 1024 Printhead | 25pl High-Speed Industrial Inkjet Head

Description

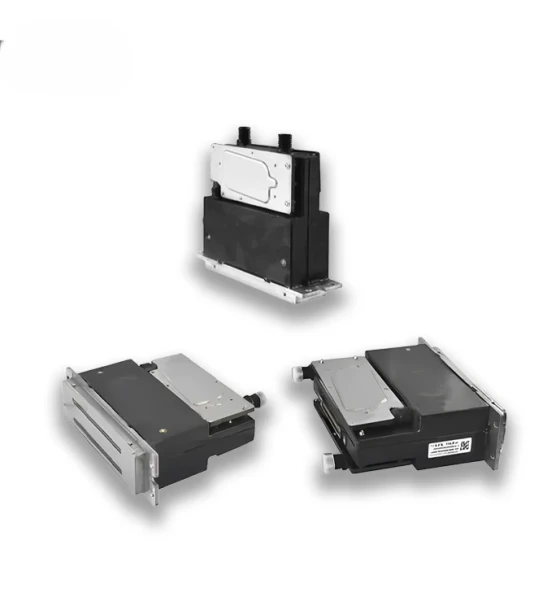

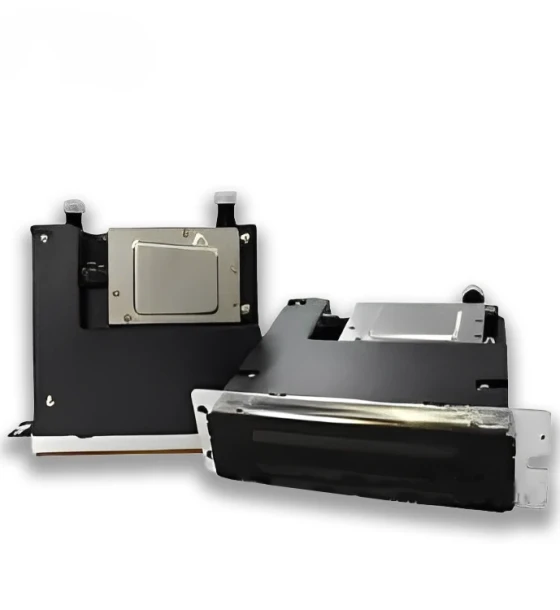

Seiko Alpha 1024 Printhead

High-Speed Industrial Inkjet Solution | Independent Nozzle Technology

The Seiko Alpha 1024 Printhead is a high-performance industrial inkjet solution designed for solvent printers and demanding production environments. Featuring independent nozzle technology, it delivers high firing frequency, stable ink jetting, and an extended service life.

With 1024 nozzles per head, the Alpha 1024 supports single-color and dual-color printing at resolutions of 360 DPI and 180 DPI. Capable of firing frequencies up to 35 kHz, it enables high-speed printing speeds of up to 260 sqm/hr.

Additional Information

Key Features

Independent Nozzle Technology Ensures stable ink jetting and a longer service life, minimizing downtime in high-volume production.
High-Speed Performance With firing frequencies up to 35 kHz and 1024 nozzles, achieve production speeds of up to 260 sqm/hr.
Versatile Ink Compatibility Supports a wide range of industrial fluids including Oil-based, UV, Solvent, and Water-based inks.
Integrated Temperature Control Features a built-in heater to maintain optimal ink viscosity for consistent print quality.
Comprehensive Warranty Comes with a one-year warranty on boards and motors, plus lifetime free technical support and installation guidance.

Technical Specifications

Specification	α 1024-L	α 1024-M	α 1024-S
Drop Size	25 pl	15 pl	5 pl
Fire Frequency	30 kHz	35 kHz	35 kHz
Native Resolution	Single Color: 360 dpi \| Dual Color: 180 dpi
Number of Nozzles	1024
Printhead Width	72 mm
Jetting Velocity	7 m/sec
Print Interface	KEL Parallel Interface
Printhead Heater	Built-in Heater
Ink Type	Oil-Based, UV, Solvent, Water-Based
Printhead Weight	0.7 kg
Packing Size	187 × 170 × 65 mm
