Additional Information
Key Features
- Flexible Printhead Configuration Supports a wide range of industrial heads including Epson I3200, GH2220, Ricoh G5, and G6, allowing customization based on speed and quality requirements.
- Heavy-Duty Media Support Accommodates materials with thickness up to 150mm, perfect for industrial applications involving thick substrates like wood, metal, and acrylic.
- Advanced Vacuum Platform Features a hard alumina honeycomb platform that adapts to materials of different specifications, ensuring stable feeding and precise printing.
- High Resolution Output Achieves resolutions up to 1200 DPI, delivering sharp details and vibrant colors for high-end graphic production.

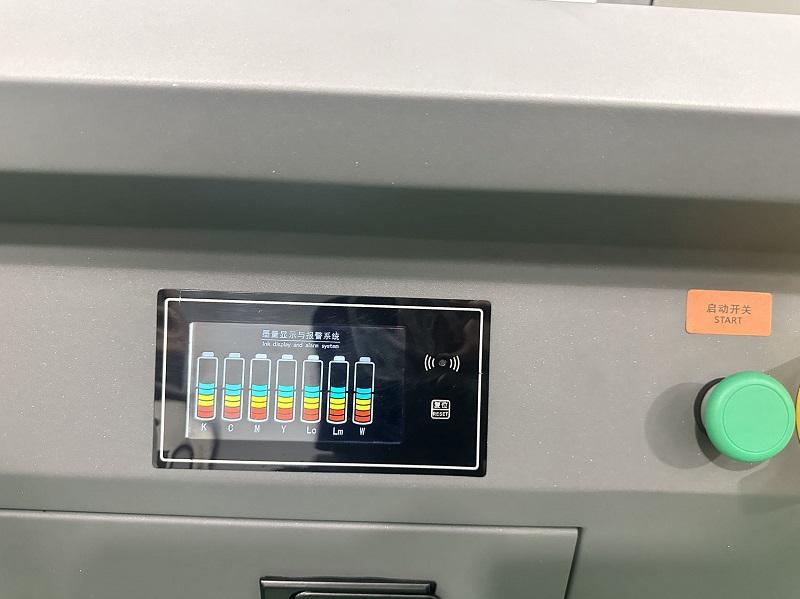

- Dual Negative Pressure Ink System Ensures stable ink supply with 1.5L cartridges equipped with a warning system to prevent ink shortages during production.
Technical Specifications
Printing Configuration

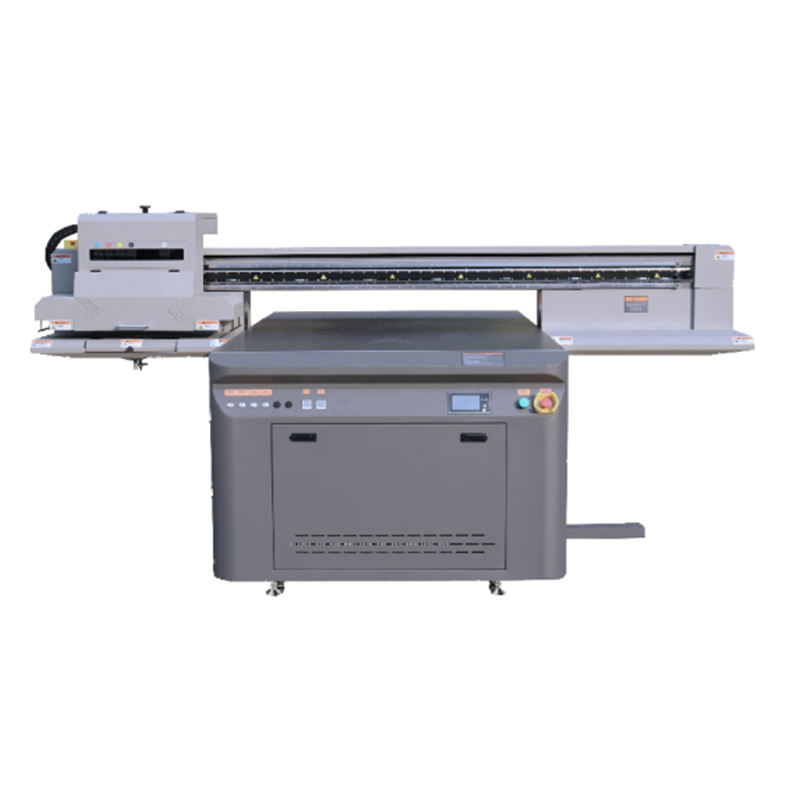

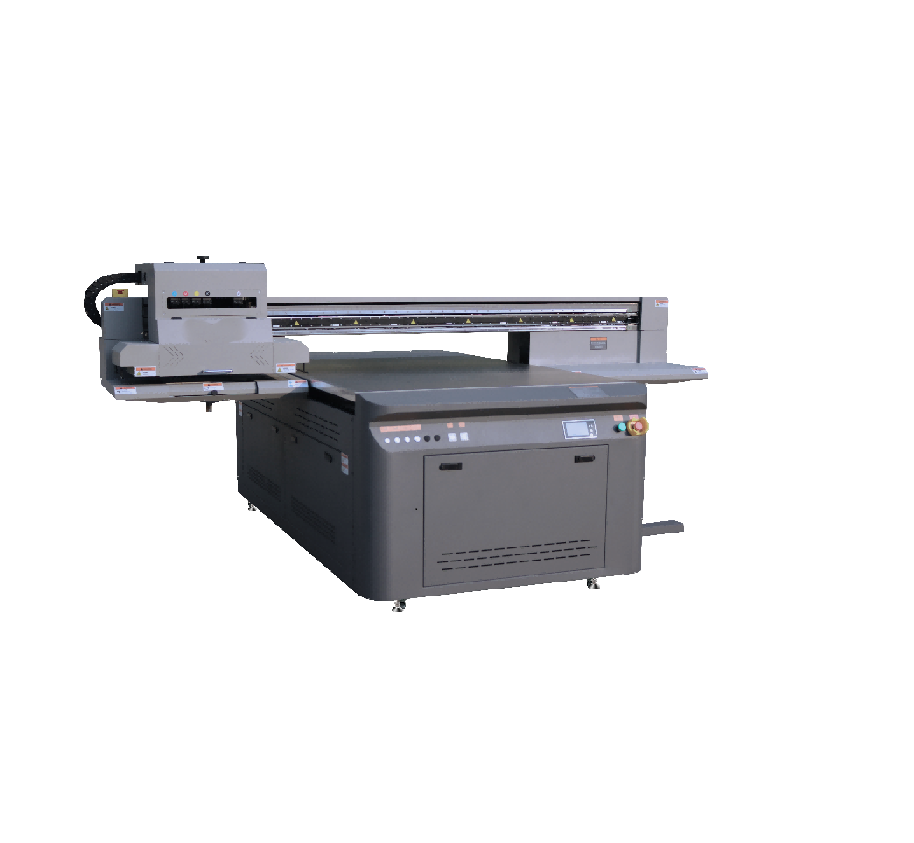

| Model | CG-UV1216 |
|---|---|
| Printhead Options | I3200 / GH2220 / G5 / G6 |
| Resolution | 600 DPI, 900 DPI, 1200 DPI |
| Colors | CMYK / LcLm / W / V (Optional) |
| Ink Type | UV Ink |
| Print Size (Max) | 1200 × 1600 mm |
Hardware & Platform
| Vacuum Platform | Hard Alumina Honeycomb Platform |
|---|---|
| Media Thickness | 0 – 150 mm |
| Curing System | UV LED / Mercury Lamp (Optional) |
| Ink Cartridge | 1.5L with Warning System |

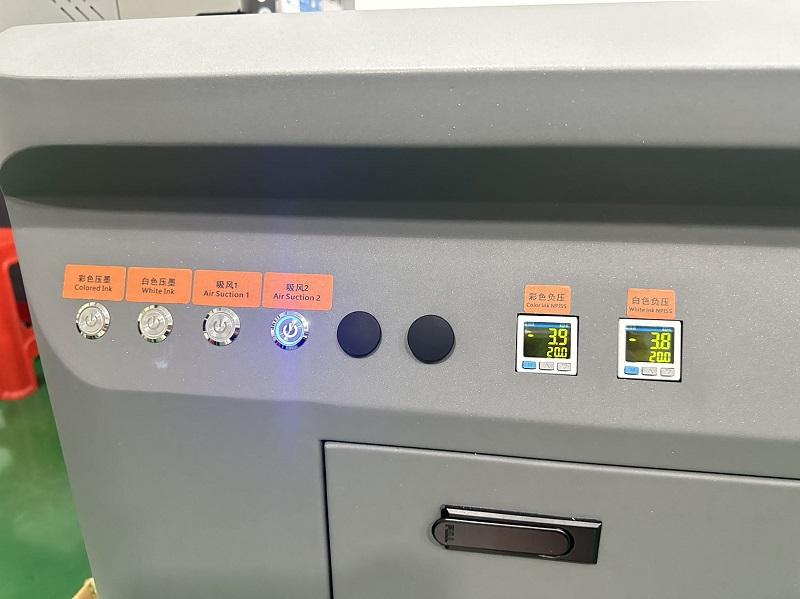

| Ink Supply System | Dual Negative Pressure Ink Supply System |
System & Software
| Operating System | Windows 7/8/10/11 64bit (RAM ≥ 8G) |
|---|---|
| RIP Software | Photoprint, Colorgate |
| Supported Formats | TIFF, JPEG, EPS, PDF, PSD, CDR, AI, CAD |
Physical & Electrical
| Machine Dimensions (W×L×H) | 2800 × 2360 × 1600 mm |
|---|---|
| Net Weight | 700 kg |
| Power Supply | Max: 5kW; AC 220V (±10%) >15A; 50Hz~60Hz |
| Working Environment | Temp: 18℃~26℃, Humidity: 40%~70% |
| Certifications | CE, SGS, MSDS |
Print Media Applications
- Glass
- Acrylic
- Ceramic Tile
- Metal
- PVC Board
- Cardboard
- Wooden
- Decal
- Wallpaper
- Flex Banner
