Additional Information
Key Features
- Flexible Printhead Configuration Supports luxury configurations of 8 Seiko 508GS-12PL or 510GS-50PL heads, allowing users to balance speed and quality for specific application needs.
- Patented Lifting Ink Stack System Features a patented design lifting ink stack that provides superior air tightness, ensuring safe and reliable printhead protection.
- Advanced Heating & Drying System Equipped with a four-stage heating system (pre, mid, post, and printhead heating) combined with an infrared hot air drying system for immediate media curing.
- Rugged Industrial Construction Built with a heavy-duty body structure to minimize vibration and guarantee stable, high-quality output during long print runs.
- Intelligent Automation Includes automatic moisturizing, intelligent cleaning, and an automatic take-up and feeding system for simple, user-friendly operation.
Technical Specifications
Printing Configuration

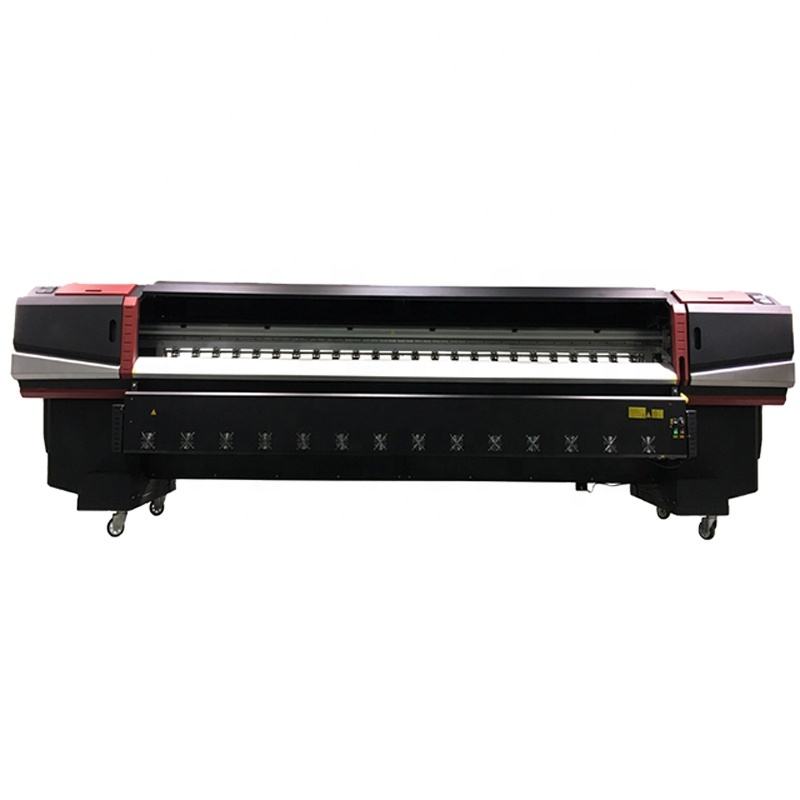

| Printer Model | Nuventure CJ4008 Solvent Printer |
|---|---|
| Printhead Options | Seiko 508GS-12PL (8 Heads) / Seiko 510GS-50PL (8 Heads) / Seiko 508GS-12PL (4 Heads) |
| Print Width | 3200mm |
| Ink Type | Solvent Ink / Eco-Solvent Ink |
| Color Configuration | CMYK |
| RIP Software | Maintop, Ultralink, Photoprint |
| Interface | USB 2.0 + Fiber Optical |
Print Speed Performance
| Print Mode | Resolution / Pass | 8x 508GS (12pl) | 8x 510GS (50pl) | 4x 508GS (12pl) |
|---|---|---|---|---|
| Draft Mode | 480*360dpi (2 Pass) | 220 ㎡/h | 130 ㎡/h | 110 ㎡/h |
| Speed Mode | 480*540dpi (3 Pass) | 130 ㎡/h | 120 ㎡/h | 75 ㎡/h |
| Standard Mode | 480*720dpi (4 Pass) | 95 ㎡/h | 75 ㎡/h | 56 ㎡/h |
Printing Assistant System
| Heating System | 4-Stage: Before printing, during printing, after printing, & printhead heating |
|---|---|
| Air Drying System | Infrared heating + Fan drying system (Middle infrared wave) |
| Cleaning Method | Intelligent cleaning + Head capping moisturizing |
| Carriage Height | 2-5mm distance to platform (adjustable) |
Media Handling
| Media Processing | Double rod feeding system, Single rod take-up system (optional) |
|---|---|
| Media Types | PVC Flex Banner, Self-adhesive Vinyl, Mesh, Billboard Banner, Photo Paper, PP, etc. |
Physical & Electrical Specifications
| Working Voltage | AC220V 50/60HZ |
|---|---|
| Power Specification | Print System: 500W | Heating System: 1500W | IR Heating: 3600W |
| Operating Environment | Temperature: 22°C-28°C, Humidity: 40%-70% RH |

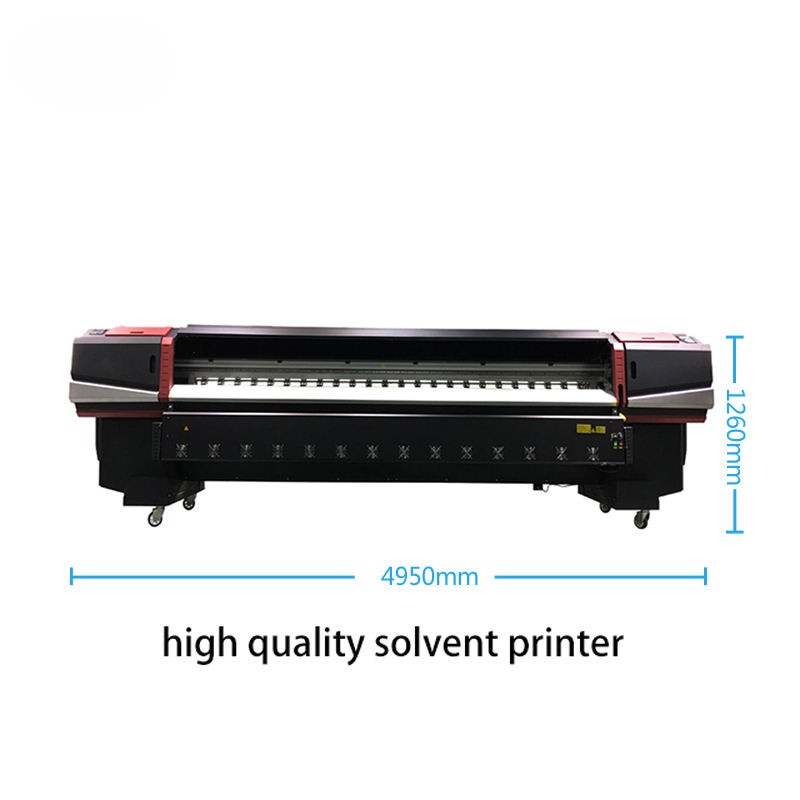

| Machine Dimensions | 4950mm (L) * 1030mm (W) * 1310mm (H) |
| Net Weight | 600KG ±15KG |
| Gross Weight | 760KG ±15KG |
