Additional Information
Key Features
- Multi-Head Configuration Support Uniquely designed to support Seiko RC1536, 1024HG, and 508GS printheads, allowing users to choose between high precision or ultra-high-speed configurations.
- Seiko Alfa Heads Performance When equipped with Seiko Alfa Heads (508GS), the printer achieves blistering speeds of up to 2800 sqft/hr, ideal for high-volume production environments.
- Robust Industrial Design Engineered for durability and stability, ensuring consistent print quality even during long, continuous printing runs.
- Optimized Ink Delivery Compatible with a range of industrial ink types (depending on the selected printhead), delivering vibrant colors and excellent durability for various applications.
- Wide Format Capability Designed to handle wide-format media efficiently, making it suitable for banners, signage, and industrial applications.
Technical Specifications
Printing Configuration

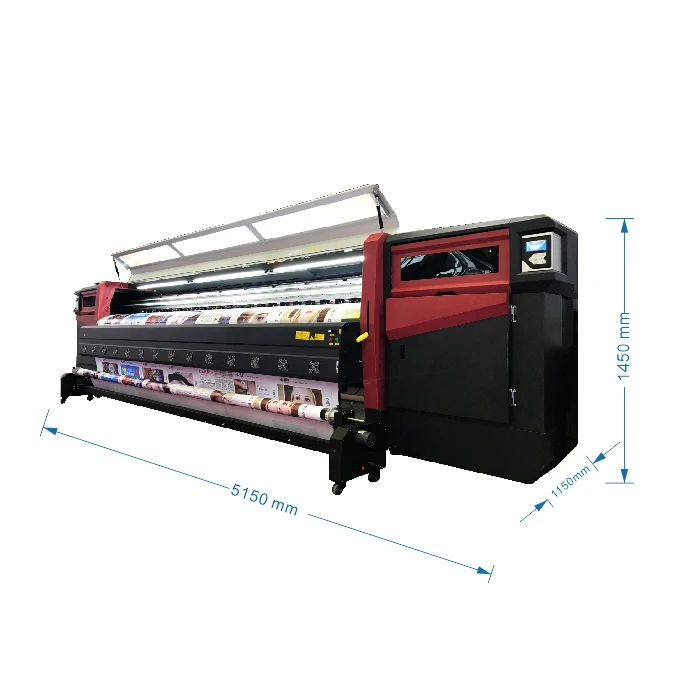

| Printer Model | Nuventure CJ7308 |
|---|---|
| Available Printhead Options | Seiko RC1536 / Seiko 1024HG / Seiko 508GS (Alfa Heads) |
| Printhead Quantity | Configurable (Standard Industrial Array) |
| Ink Compatibility | Solvent / Eco-Solvent / UV (Depending on head configuration) |
Performance Metrics
| Maximum Print Speed | Up to 2800 sqft/hr (with Seiko Alfa Heads) |
|---|---|
| Print Quality | High-Definition output with variable drop technology |
| Resolution Range | Configurable based on printhead selection (High Speed / High Quality modes) |
Media Handling
| Media Width | Wide Format (Model 7308 implies approx. 73" / 1.85m print width) |
|---|---|
| Media Types | Vinyl, Flex, Banner, Paper, and other roll-to-roll materials |
| System Type | Roll-to-Roll with precision tension control |
General Specifications
| Operating Environment | Temperature: 20°C-30°C, Humidity: 40%-60% |
|---|---|
| File Formats | TIFF, JPG, PDF, EPS, etc. |
| RIP Software | Compatible with industry-leading RIP software for color management |
