Additional Information
Key Features
- Toshiba CF3 Industrial Heads Features high-precision Toshiba CF3 printheads with a 3.5pl drop size, ensuring fine detail and smooth gradients.
- 360° Rotary Printing Capable of printing full circumference (360 degrees) on cylindrical and conical objects with diameters ranging from 45mm to 125mm.
- White & Varnish Capability Supports CMYK, White, and Varnish inks, allowing for vibrant prints on dark surfaces and textured special effects.
- High-Speed Production Achieves print speeds as fast as 20 seconds per piece, optimizing throughput for commercial environments.
- Versatile Media Handling Handles various shapes including cylinders, cones (0-5 degrees taper), and special shapes with ease.
Technical Specifications
Printing Configuration

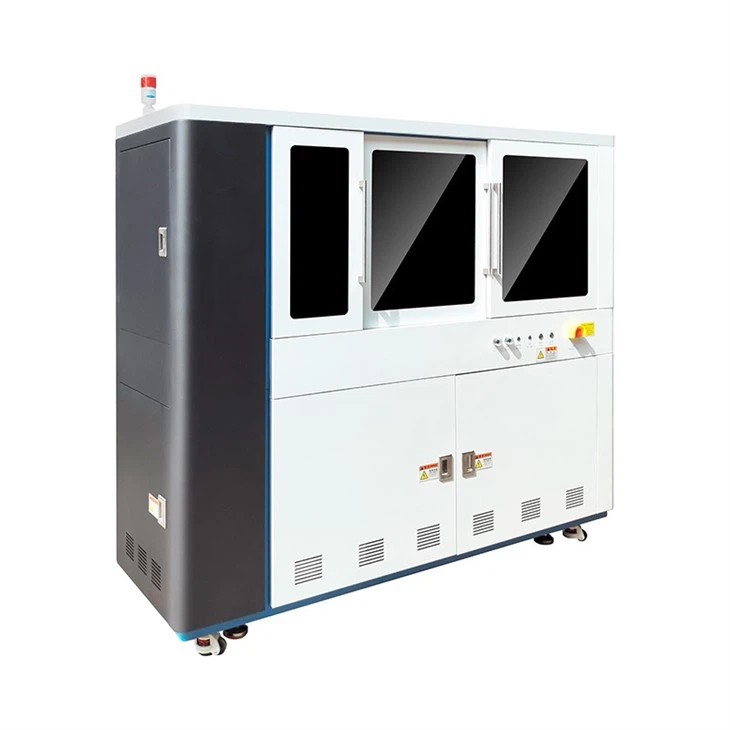

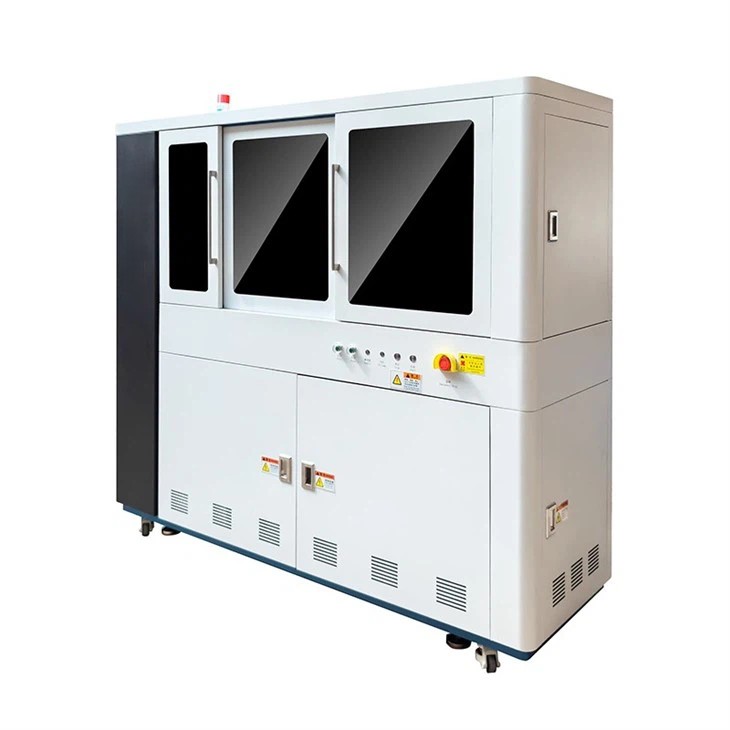

| Model | CG-F5 |
|---|---|
| Printer Type | UV Cylinder Printer |
| Printhead | Toshiba CF3 |
| Number of Printheads | 1 – 5 Nos. (Optional) |
| Max Resolution | 600 × 1800 dpi |
| Ink Drop Size | 3.5 pl |
| Printing Mode | 360 degrees rotary printing |
| Printing Speed | As fast as 20s per piece |
Object Compatibility
| Object Diameter | 45 mm – 125 mm |
|---|---|
| Print Length | 30 mm – 270 mm |
| Taper Support | 0 – 5 degrees |
| Applicable Shapes | Cylinder, Conical, Special shapes |
Ink & System
| Ink Type | UV Ink |
|---|---|
| Ink Colors | K, C, M, Y, W (White), V (Varnish) |
| Curing System | LED UV Lamp |
| RIP Software | RIPrint |
| Data Interface | Gigabit Ethernet |
| Image Formats | TIFF, JPG, EPS, PDF, PNG, AI, PSD |
Physical & Electrical
| Machine Dimensions | 1990 × 685 × 1850 mm |
|---|---|
| Machine Weight | 450 kg |
| Power Supply | AC 220V / 110V, 50/60Hz |
| Working Temperature | 20℃ – 30℃ |
| Working Humidity | 30% – 60% |
| Certification | CE / ROHS / SGS |
Applications
- Water Bottles
- Tumblers
- Thermos Flasks
- Wine Bottles
- Mason Jars
- Sports Cans
- Conical Cups
- Promotional Items
